1. What is Watertech Vegetation Protection Mat Method?
Applicable Areas: Environment-friendly river maintenance / Environment-friendly / Ecological restoration / Water-friendly environment
Watertech vegetation protection mat method is a product that attaches a compound seed and a low-flowering wildflower seed suitable for water conversion in a mat incorporating 5 or 6 layers of materials at the bottom of the semi-permanent ridge coating network.
It is constructed in various dikes, farms/drainage, general rivers and arable lands in order to prevent the slopes from collapsing or losing due to floods or heavy rains.
2. Production product
Watertech Vegetation Revetment Mat: Type A
Item |
Type |
Test Methods |
Watertech Vegetation Revetment Mat Type A |
River, dike, drainage |
- ㆍNational River Embankment
- ㆍReservoir Lake
- ㆍEmergency recovery area of lost embankment
- ㆍConversion to rice paddy area
- ㆍLocal 1/2 grade river embankment
- ㆍRiver levee of high speed running fluid
- ㆍRegional Areas
|
Slope Protector (Road) |
- ㆍReplacement area of fall prevention
- ㆍLeachate Area
- ㆍScour / sliding area
- ㆍLandslide Recovery Area
|
3. Functionality of Watertech Vegetation Protection Mat
Principle

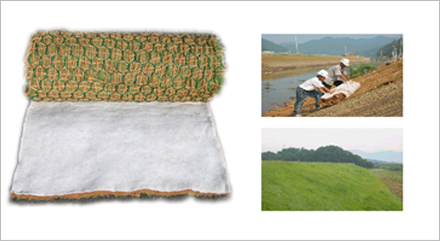

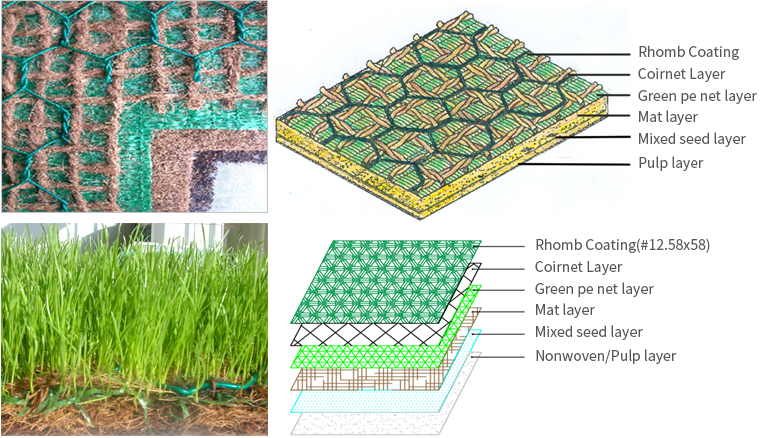

- It is a roll type product that makes six kinds of excellent materials become mat into a three-dimensional structure and adheres mixed seeds.
It is a new construction method protecting slopes by dikes, farming / drainage from floods and flow rates, and greening rapidly.
Material

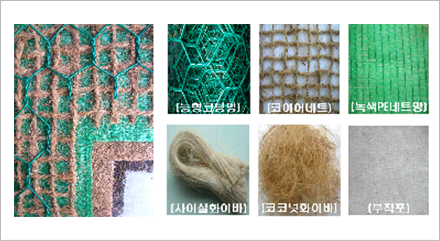

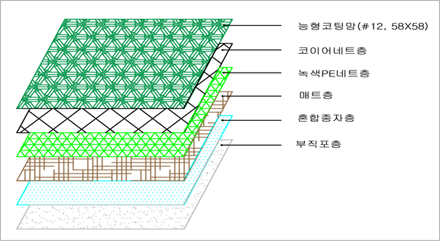

- Unified mat with 5 or 6 layers integrated at the bottom of the rhomb coating net
- The water content of the biodegradable net and mat layer is high.
Durability
- Combination of rhomb coating net (#12,58X58) and mat assembly increases durability
- Long-lasting period of natural fiber
Impact resistance
- Reducing running flow rate by ground adhesion of the mat assembly and high water absorption
- Slope protection by construction of anchor pin (L=500)
- Early-ripening rice plant co-efficient: 0.013 ~ 0.0189
- Flow rate: 5-6 m/sec
- Water flow cross section is widened
Corrosion resistance
- Mat assembly combined with 6 kinds of layer structures to protect embankment from flooding
- Suppresses erosion caused by flow rate and blue
- Scour and sliding prevention effect
- 2 or 3 embankment protection by netization of roots
Applicability
- Specialized in 6 kinds of products depending on the application area
* Watertec A type (T = 180 ~ 200mm)
Constructability
- Easy to install with roll-type seed mat
- Anchoring the mat after laying the mat
Aesthetics

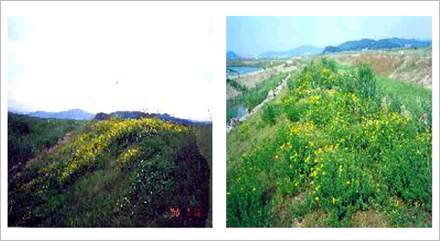

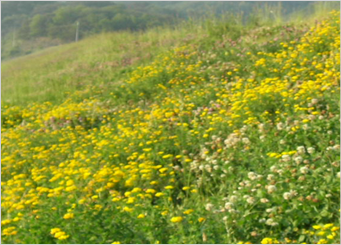

- 5 kinds of wildflowers provide beautiful and blooming scenery
- Build new attractions and regional specializations
Environmental
- Environmental hormones are not released by biodegradable natural materials
- Providing habitat for animals and plants by creating waterside and aquatic environment
- Water Purification Effect by Aquatic Roots of Aquatic Plants
Greening efficiency
- Greening completed 2 or 3 months after construction by high water content of mat assembly
- Reeds are suppressed by composite seeds for wetland

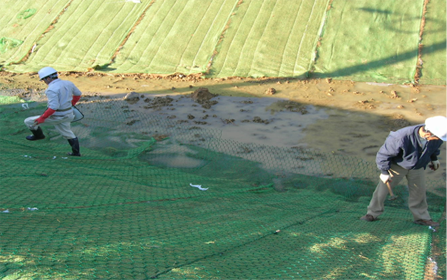

4. Construction order
-
1. Cleaning up surface
-

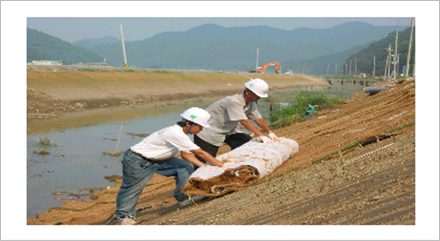

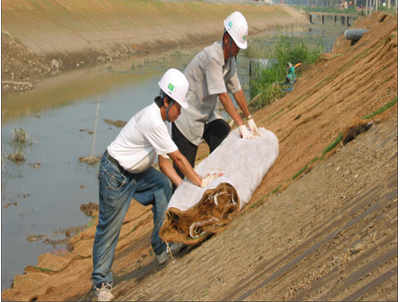

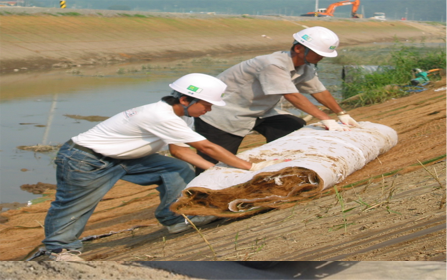

2. Laying mat
-
3. Installing rhomb coating net
-

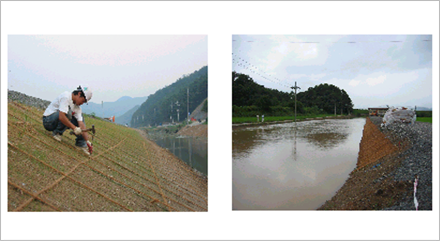

4. Fixing with anchor pin (L=500mm)
-
5. Greening completion after 2 or 3 months of construction

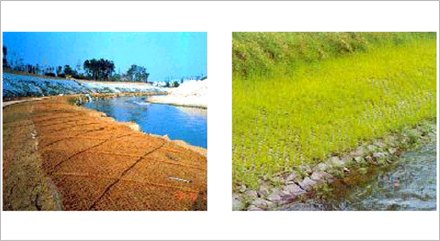

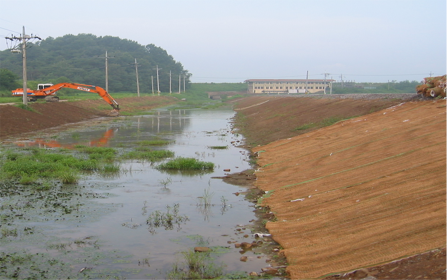

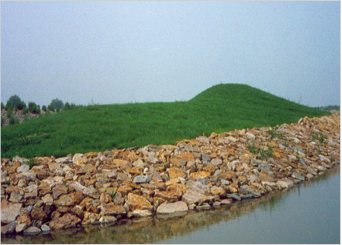

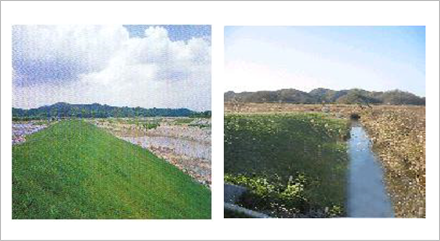

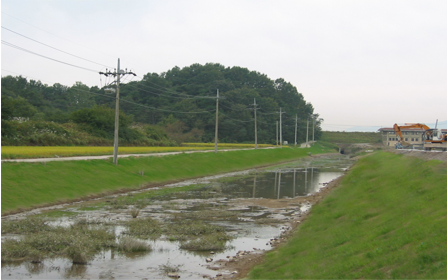

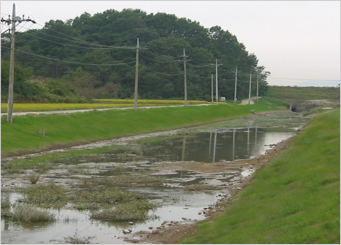

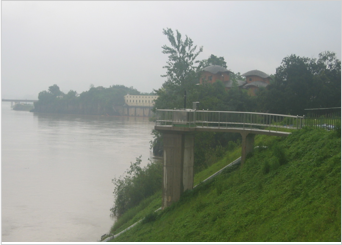

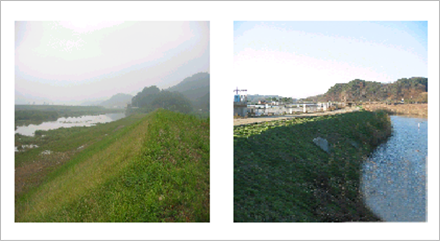

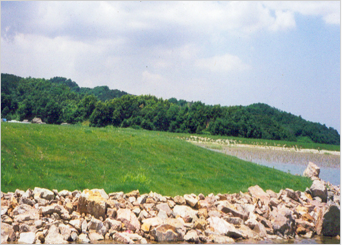

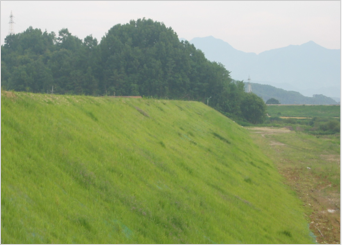

# 워터택(Watertech) 녹화공법 현장 사진
